MED CRANK PULLEY LOCK PLATE

MED CRANK PULLEY LOCK PLATE

Part No: MED-1411-CL
£6.00 £5.00 EXC VAT
£6.00 £5.00 EXC VAT
Sale
Availability: In Stock
Arrow

Description

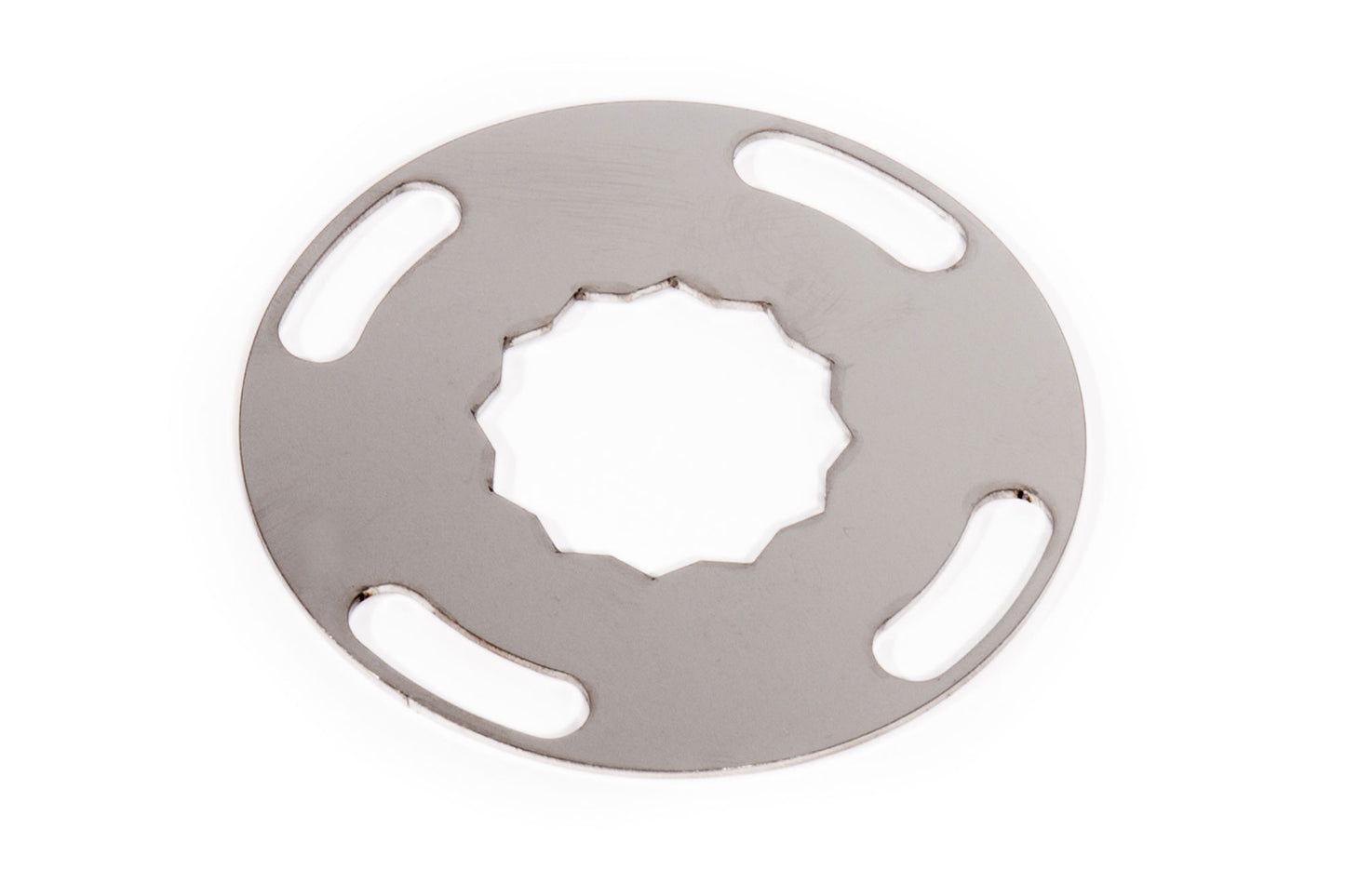

The MED crank pulley locking plate is laser cut from stainless steel to suit the range of MED crankshaft dynamic damper/pulleys.


This is the most secure method of holding the crankshaft damper bolt in place.



Fitting instructions:


1 - Fit crankshaft damper assembly.


2 - Apply 27-01 thread lock and torque MED crankshaft bolt to 70lb/ft.


3 - Remove four cap head screws from crank pulley.

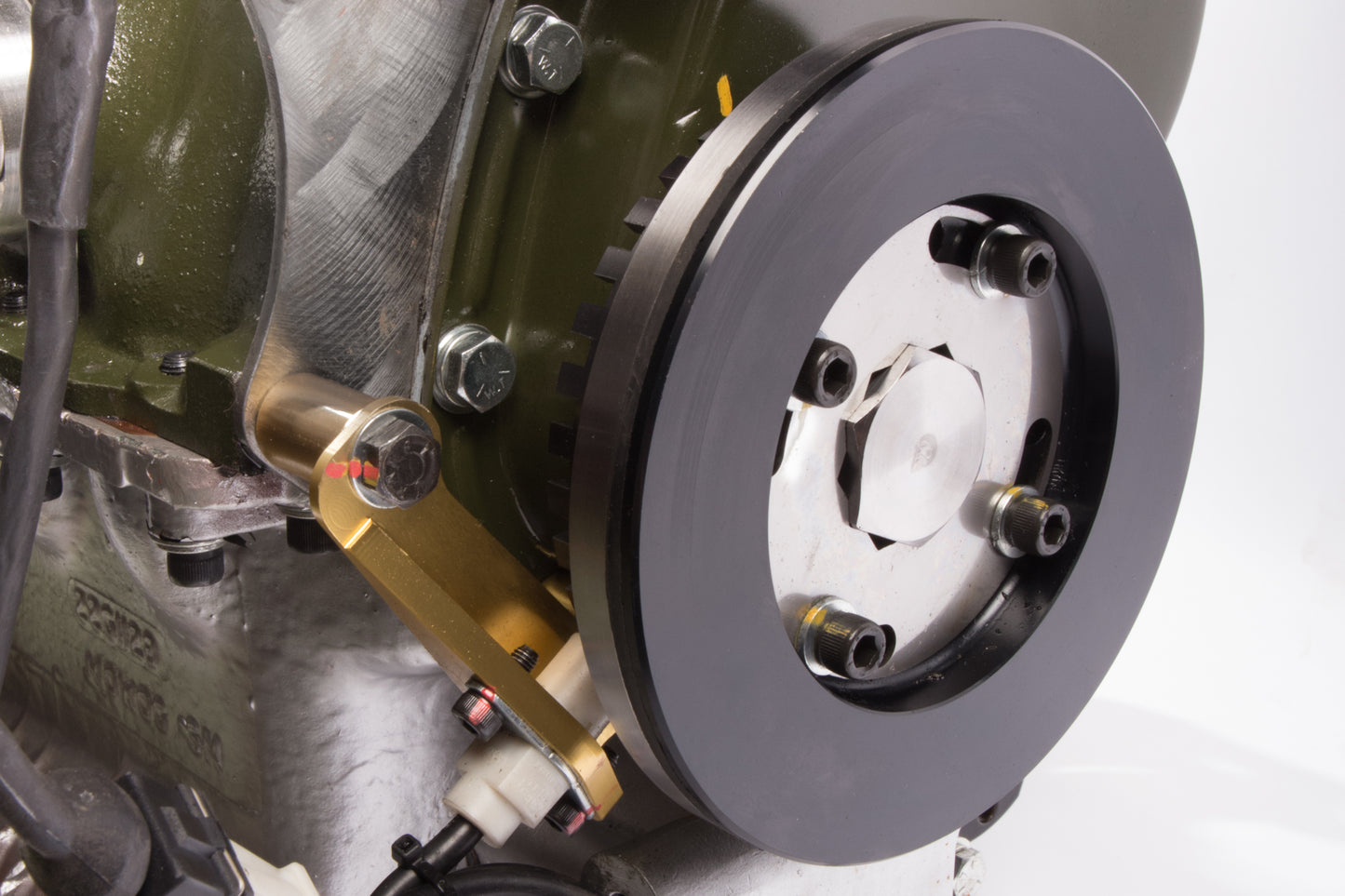

4 - Install locking plate.


5 - Apply thread lock and torque cap head screws to 10lb/ft.



Remember to reassemble a balanced crank damper assembly in the same position to retain an accurate balance.
