18MM LITTLE END BUSH SET

18MM LITTLE END BUSH SET

Part No: MED-1018-LB
Regular price £25.00
Regular price Sale price £25.00 £20.83 EXC VAT
Sale
Availability: In Stock
Arrow

Description

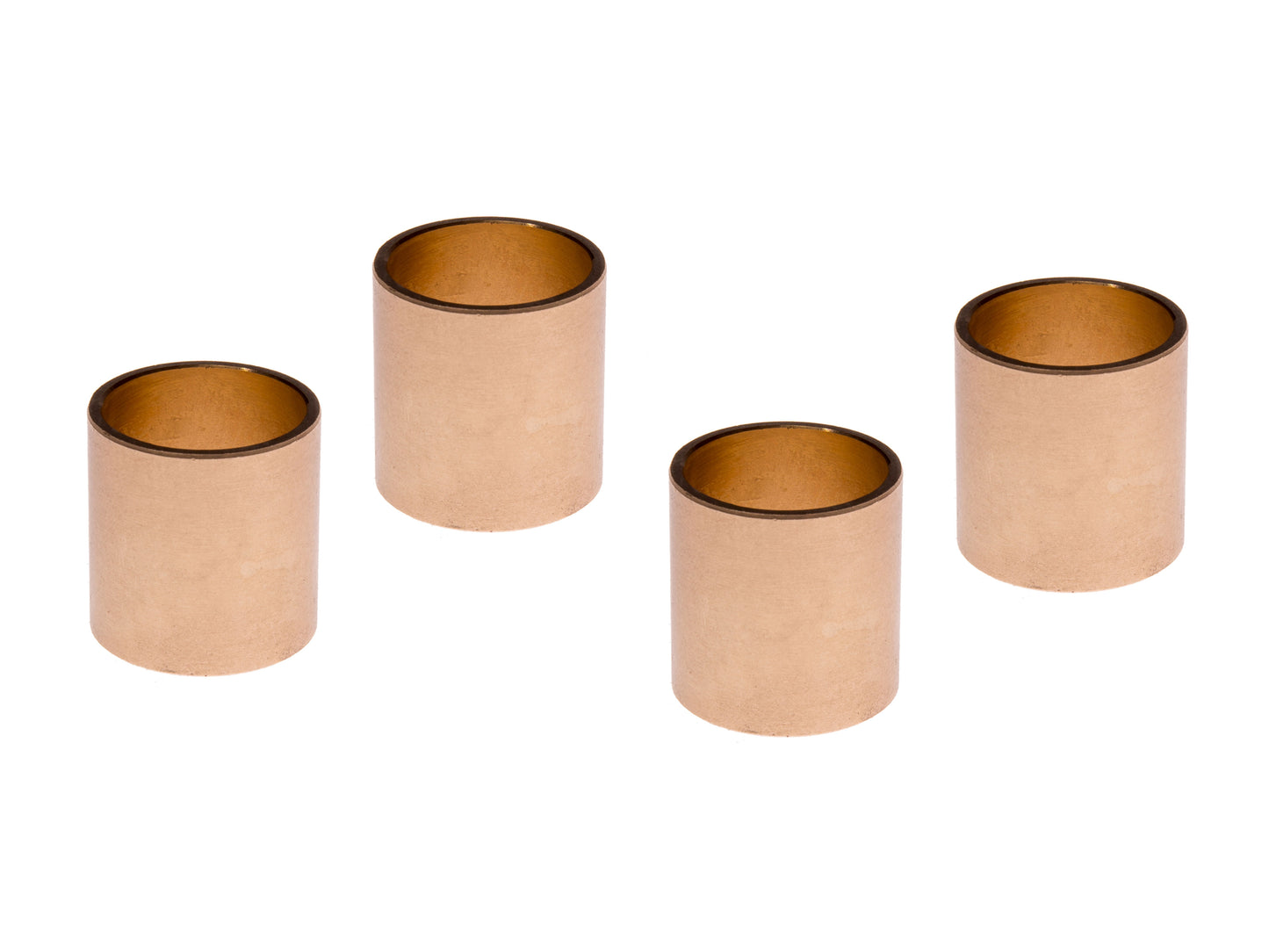

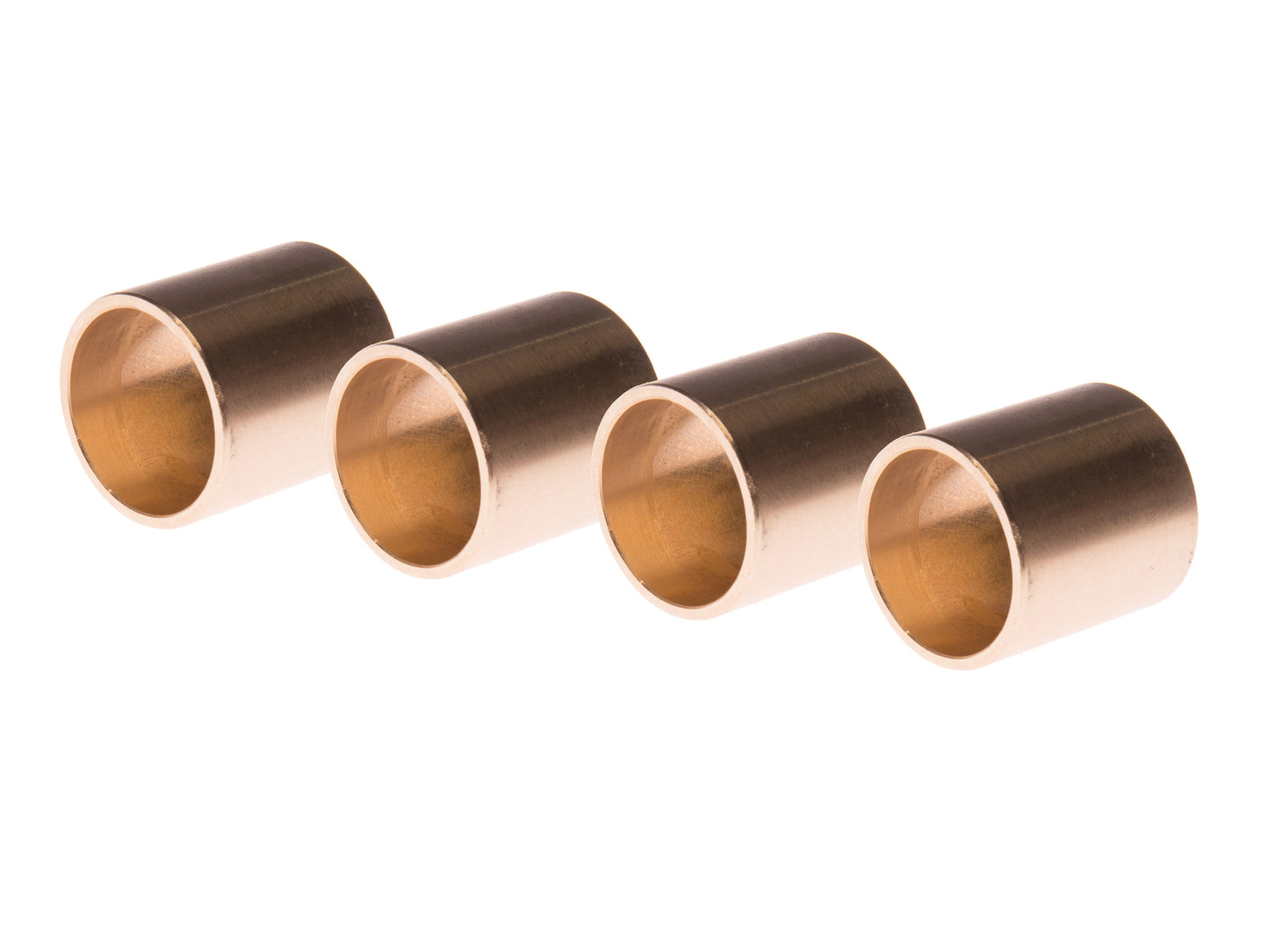

A set of bronze bushes to allow the conversion of standard conrod little ends to a fully-floating setup with 18mm gudgeon pins.


Most Omega forged pistons use an 18mm gudgeon pin, whereas the standard conrods suit a 13/16" pin. When using MED steel conrods, this is no problem, but on standard rods you will need to modify the little ends.


See the Additional Information tab for more detail.

Arrow

Additional Information

Tech info for conversion to fully floating con rods:

1. Fit supplied bushes to little ends and hone to a finished size of 18.015mm-18.020mm.

2. Machine little end of conrod on the short side to give a finished width of 21mm.

3. Drill 1/8" hole through the little end and bush at the top of the conrod and lightly countersink to allow oil feed to gudgeon pin.
