MED TWIN HS4 STUB STACK SYSTEM - MGB

Part No: MEDB-8015-SSF
Regular price £165.00 £137.50 EXC VAT
Regular price Sale price £165.00 £137.50 EXC VAT
Sale
Availability: In Stock

Technical Video:View More  Arrow

Arrow

Description

The MED aluminium stub stacks have been extensively tested on our flow bench to optimise the elliptical radius on the stub stack. This results in improved air flow to the carb and a proven increase in performance on a wide range of different engines and rolling roads.



Combined with the genuine ITG air filter, this offers an unbeatable package for the twin HS4 1.5-inch SU carburettors as fitted to the MGB. The filter base plate is laser cut from lightweight aluminium, while the specially-designed ITG filter with full radius sides gives an easy fit within the standard bulkhead.


Whereas many aftermarket air filters have a solid plate opposite the carb mouth, the ITG design offers maximum airflow through an open-style foam filter.

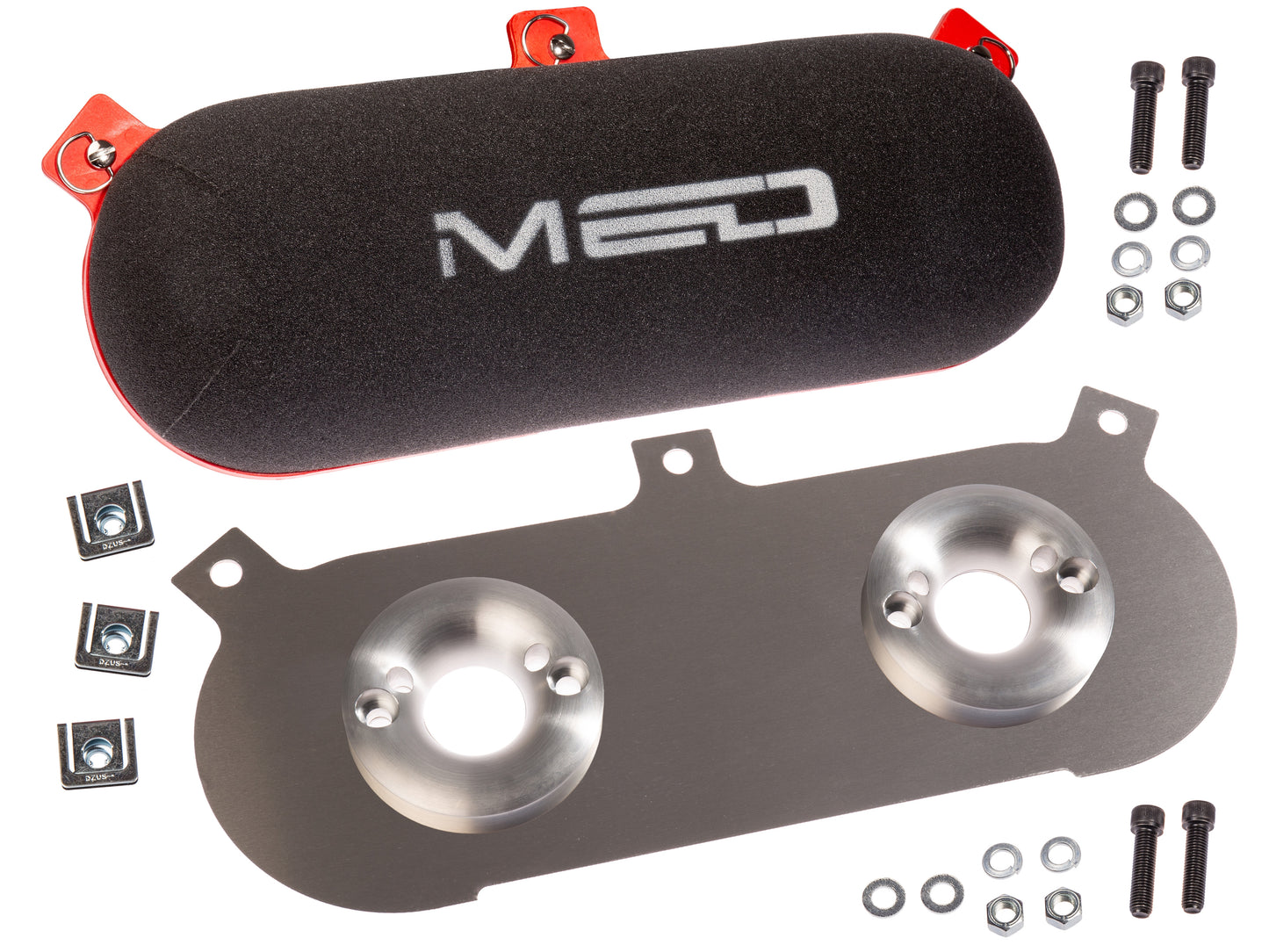

Kit contents:



    • Laser-cut aluminium base plate to suit twin 1.5-inch HS4 SU on MGB.


    • CNC-machined aluminium stub stacks for HS4.


    • MED-branded ITG foam filter.


    • All fixings required (Both UNC and UNF screws/nuts to suit different carbs).





Reticulated polyester foam filters achieve maximum air flow, cleaning efficiency and dust load-up tolerance.They allow air to pass through without causing a large drop in pressure, arresting a high proportion of airborne dust while feeding the engine clean air.


Dust load-up tolerance is the capability to absorb a large amount of dust without reducing air flow capacity.

Filter


Frequently Asked Questions

How does this fit to the carburettors?

Arrow

Firstly remove the standard airbox and elbow from the car. The aluminium baseplate mounts directly to the inlet of the carburettors, sandwiched in place using the stub stacks. Ensure the baseplate and stub stacks are perfectly aligned with the inlets and nip up the fixings, preferably with some Loctite on the threads. Now clip the air filter in place - you may find it easier to test fit the filter to the baseplate for the first time before it's on the car.

How much power will this gain?

Arrow

Over many years of testing on multiple independent rolling roads and engine dynos, we have seen consistent gains of around 5bhp and 5lb.ft torque on modified 1275 engines using our stub stack systems, compared to the standard air box. We've yet to find a more effective induction system!

Will this affect my engine tuning?

Arrow

This stub stack system will flow considerably more air than the standard air box and even many alternative aftermarket air filters. This extra flow can lean off the air:fuel ratio, so we would highly recommend having the carb tuned post-fitment to get the most from this upgrade. Every A-Series engine we've tried this system on has gained power once tuned, so it is well worthwhile, and makes this one of the most effective bolt-on upgrades for the cost.

What are the external dimensions of this air filter?

Arrow

This measures 379mm wide, 148mm tall and 65mm deep, although it is ITG's 'sausage' design, which tapers out to this maximum depth in the centre. It will give good clearance to the MGB's inner wing.

Do I need to oil the air filter?

Arrow

No, it's supplied pre-oiled and ready to use. In time you will need to clean and re-oil the filter using a specific foam filter oil. We would suggest doing this annually as part of a regular service, depending on mileage and conditions.

Will this suit all MGBs?

Arrow

Only those with a B-Series engine and twin HS4 carburettors. Some more powerful cars have larger HS6 carbs, so please double check before ordering.
